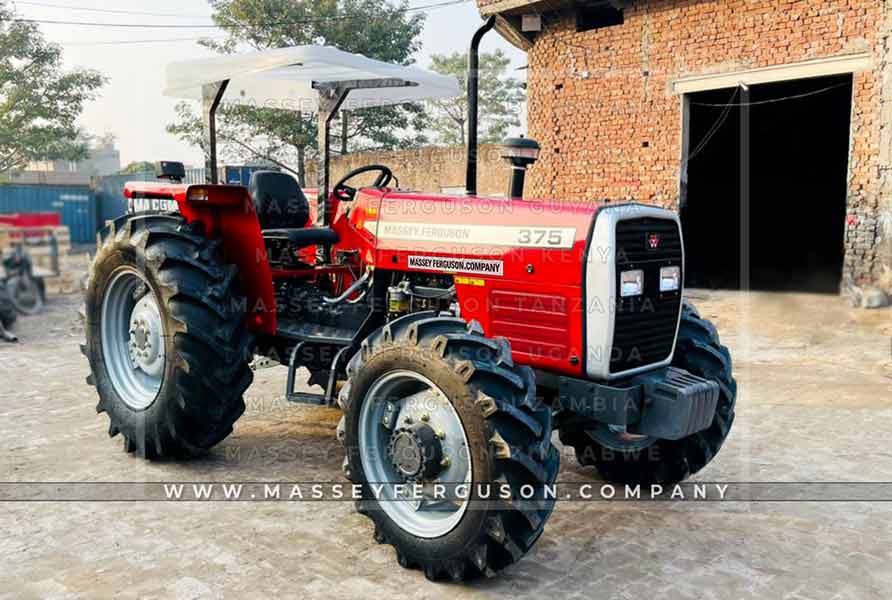

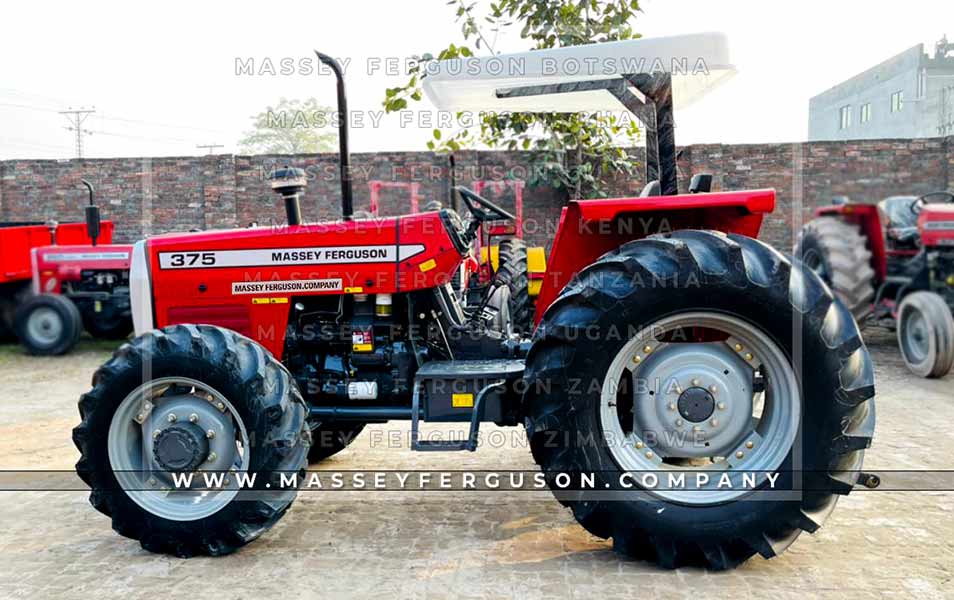

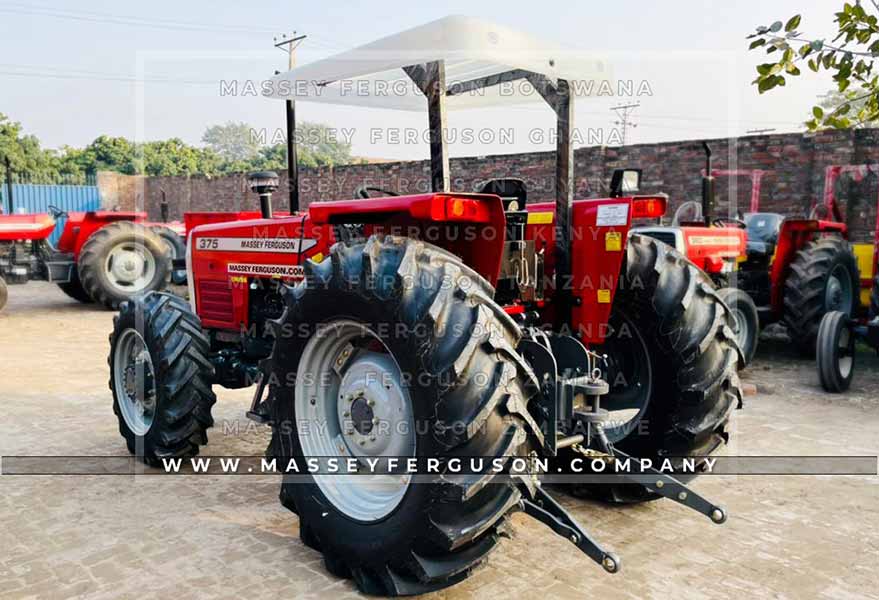

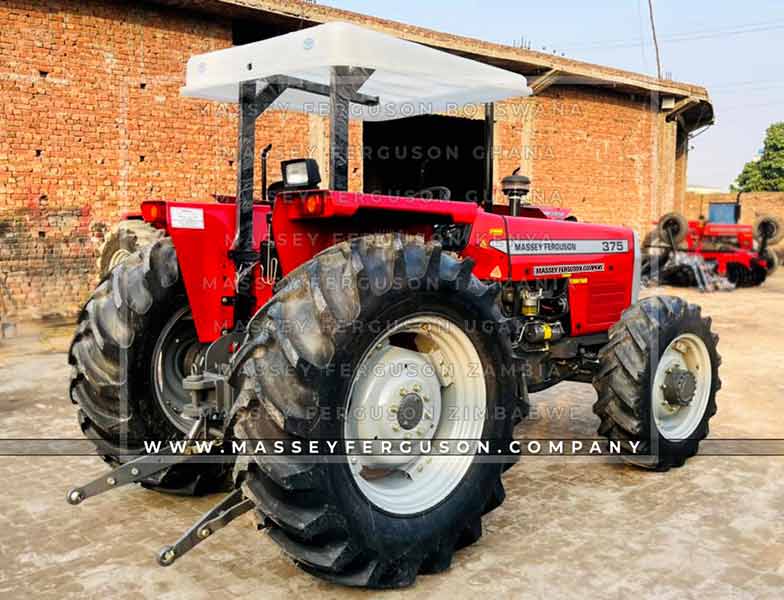

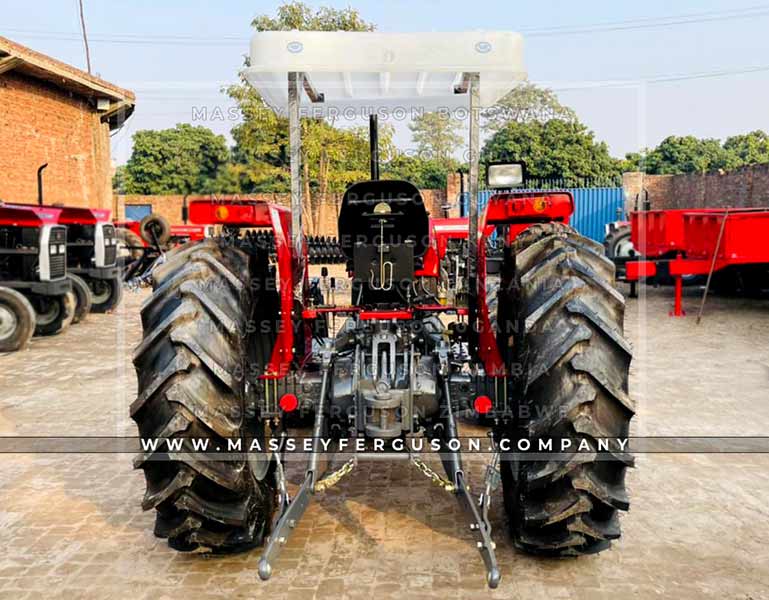

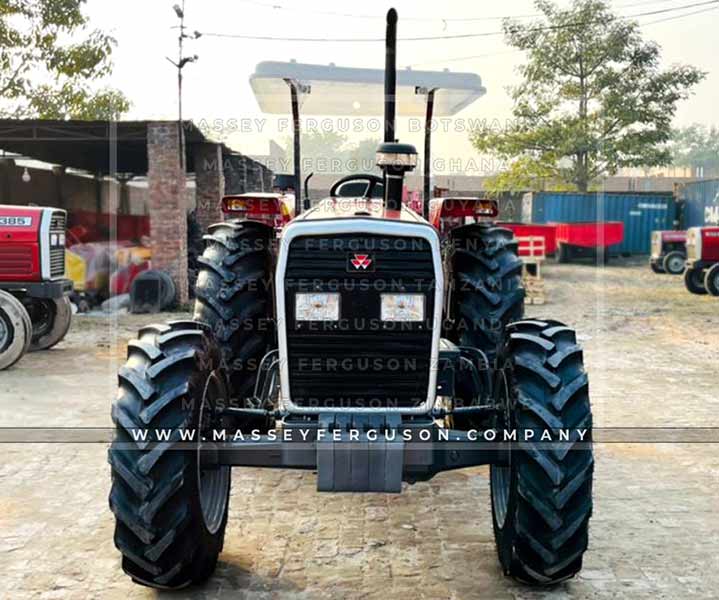

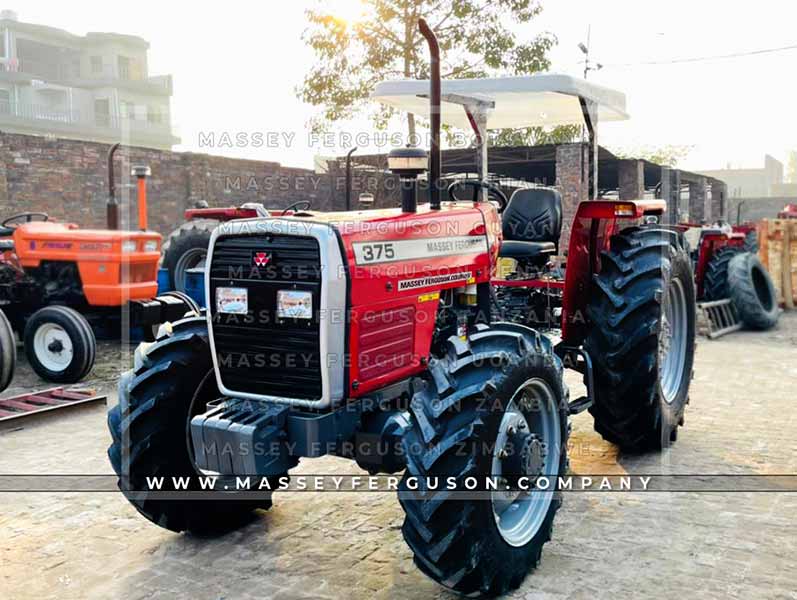

Our MF 375 is a 4WD tractor with 75 HP. This tractor is sturdier and pricier than its 2WD option. This version however is more suited to hilly and highly rain-fed areas. This heavy-duty tractor has a high PTO and a 4-cylinder engine with 8 forward and two reverse gears. Its transmission is manual and fairly easy to maintain.
| Engine Power at 2,000 rpm> | 75 (B.S) hp |
| Torque at 1,400 rpm | 276 Nm |
| PTO Power at Rated | 69.5 hp |
| Engine Speed | |
| PTO Power at 540 rpm | 63.0 hp |
| *Certified at BS AU 141a |
| Voltage | 12V, Negative Earth |
| Battery | 118 Ah |
| Starter | 2.8 kW |
| Alternator | 45 Amp |
| Type | Sliding Spur |
| Number of Gears | 8 Forward, 2 Reverse |
| Road Speed at 2,200 | Engine RPM with 16.9/14x30 rear tyres |
| Gear | Speed (km/hr) |
| Forward 1 (First Low) | 2.65 |
| Forward 2 | 3.89 |
| Forward 3 | 5.32 |
| Forward 4 | 7.41 |
| Forward 5 (First High) | 10.82 |
| Forward 6 | 15.57 |
| Forward 7 | 21.27 |
| Forward 8 | 28.56 |
| Reverse 1 (Low) | 3.61 |
| Reverse 2 (High) | 14.45 |
| Functions | Draft Control, Position Control Response Control, Constant Pumping |
| Pump Type | Reciprocating, Ferguson Pump |
| Oil Flow | 16.7 ltr/min |
| Pressure | 21.2 Mpa at normal operating temperature |
| Lift Capacity with Lower | 2,145 kg With Cat, I & II Interchangeable Balls |
| Links Horizontal |
| Axle Type | Straddle with apicyclic redution unit |
| Brake Type | Oil immersed, Multi-disc |
| Brake Pedal | Pendant |
| Braking Area | 1.774 sq. cm |
| Brake Actuation | Hydraulic |
| Parking Brake | Hand Lever Operated |
| Front | 11.2 - 24 |
| Rear | 16.9 / 14 - 30 |
| Type | Dual |
| Diameter | 305 x 254 mm |
| Lining Material | Cerametallic |
| Axle type Engagement | Parallel drive Mechanica |
| Type | Hydrostatic |
| Front Axle | 1,376 - 1,944 mm |
| Rear Axle | 1,423 - 2,134 mm |
| Make / Type | Diesel / 4.41 |
| No. of Cylinders | 4 |
| Injection | Direct |
| Bore | 101 mm |
| Stroke | 127 mm |
| Capacity (litres) | 4.1 L |
| Compression Ratio | 15.3:1 |
| Aspiration | Natural |
| Starting Aid | Thermostart |
| Throttle Control | Hand and Feet |
| Cooling | Water |
| Air Cleaner Type | Oil Bath |
| Air Pre-Cleaner | Over bonnet, air swirl |
| Fuel Filter | Dual, High Capacity |
| Exhaust | Vertical Muffler under Bonnet |
| Oil Cooler | Water Cooled |
| Note: This is a premium heavy duty engine with tuffrided cranckshaft for longer life in adverse conditions. |
| Type | Live |
| Engine Speed at 540 pto rpm | 1,789 rpm |
| Shaft Diameter | 35mm |
| No. of Splines | 6 |
| Guages | Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
| Warning Lights | Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, 4WD indication light & Auxiliary Socket |
| Gross Weight | 2,360 kg |
| Wheel Base | 2,350 mm |
| Overall Length | 3,810 mm |
| Overall Width (Min) | 1,970 mm |
| Over Exhaust | 2,425 mm |
| Over Steering Wheel | 1,690 mm |
| With Brakes | 8,518 mm |
| Under Gear Box | 425 mm |
| Under 4WD front axle | 370 mm |
| Fuel Tank | 108.0L |
| Engine Pump | 7.5L |
| Cooling System | 15.2L |
| Hydraulic System | 42L |
| Hydrostatic Steering Reservior | 1.75L |
| Oil Bath Air-Cleaner | 0.75L |
| Brake Oil | 0.25L |
| 4WD front axle differential | 6.5 L |
| Hub each side | 0.7 L |
