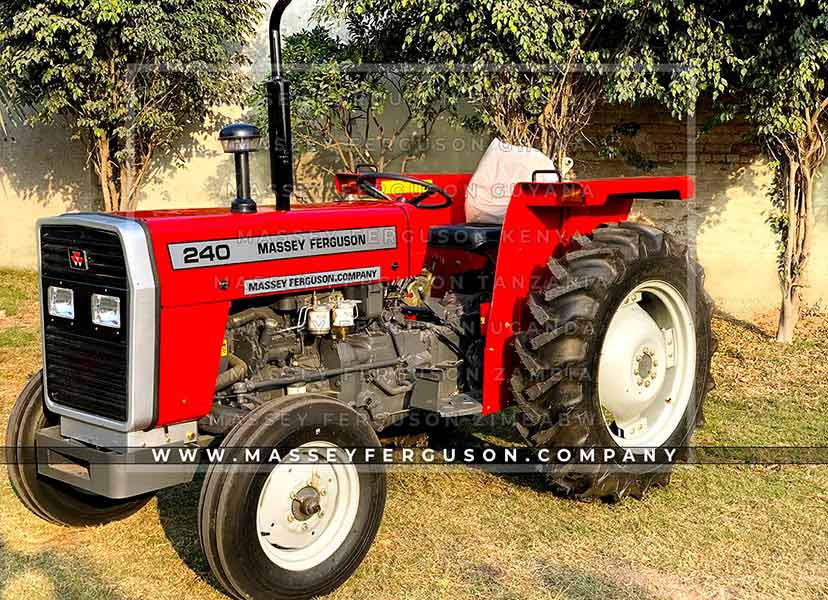

Our MF 240 is a 2WD tractor available for sale in South Africa. It is powered by 50 Horsepower. This tractor is a small one and is used for hauling purposes. This is one of the most economical tractors in this HP range. The MF 240 is a rugged tractor that is easily maneuverable. It is an all-round tractor that is preferred by most farmers for its simplicity and ease of use. This tractor is very easy to maintain.
| Max. Engine Power at 2,250 rpm | 50 (B.S) hp |
| Maximum Torque at 1,400 rpm | 172Nm |
| Maximum PTO Power at Rated | 44hp |
| Engine Speed | |
| *Certified at BS AU 141a 1971 | **Manufacturer’s Estimate |
| Voltage | 12V, Negative Earth |
| Battery | 110 Ah |
| Starter | 2.2 kW |
| Alternator | 32 Amp |
| Type | Sliding Spur |
| Number of Gears | 8 Forward, 2 Reverse |
| Road Speed at 2,250 | Engine RPM with 12.4/11-28 Tyres |
| Gear | Speed (km/hr) |
| Forward 1 (First Low) | 2.7 |
| Forward 2 | 3.9 |
| Forward 3 | 5.3 |
| Forward 4 | 7.2 |
| Forward 5 (First High) | 10.6 |
| Forward 6 | 15.4 |
| Forward 7 | 21.3 |
| Forward 8 | 28.6 |
| Reverse 1 (Low) | 3.6 |
| Reverse 2 (High) | 14.5 |
| Functions | Draft Control, Position Control |
| Pump Type | Response Control, Constant Pumping |
| Maximum Oil Flow | Reciprocating Ferguson Pump |
| Maximum Pressure | 16L / mix |
| Max. Lift Capacity with Lower | 19.2 Mpa |
| Links Horizontal | Max. Lift Capacity with Lower 1,415 kg |
| Lower Links | With Cat, I & II Interchangeable Balls |
| Brake Type | Out Board Drum Brakes |
| Actuation | Mechanical, Independant or Locked Together, Hand Lever Operated |
| Parking Brake | Mechanical |
| Different Lock | " |
| Front | 6.00 - 16 (6PR) |
| Rear | 12.4 / 11 - 26 (6PR) |
| Type | Dual Clutch |
| Diameter | 305 x 254 mm |
| Type | Box Section, Adjustable |
| Diameter | 305 x 254 mm |
| Steering | Manual |
| Front Axle | 1,245 - 1,854 mm |
| Rear Axle | 1,321 - 1,930 mm |
| Type | Diesel AD 3.1524 |
| No. of Cylinders | 3 |
| Injection | Direct |
| Bore | 91.4mm |
| Stroke | 127.0mm |
| Capacity (litres) | 2.5 L |
| Compression Ratio | 16.5:1 |
| Aspiratio | Natural |
| Starting Aid | Thermostart |
| Throttle Control | Hand and Feet |
| Cooling | Water |
| Air Cleaner Type | Oil Bath |
| Air Pre-Cleaner | Over Bonnet, Air Swirl |
| Fuel Filter | Dual, High Capacity |
| Exhaust | 5Vertical |
| Type | Live |
| Engine Speed at 540 pto rpm | 1,789 rpm |
| Shaft Diameter | 35mm |
| No. of Splines | 6 |
| Guages | echnometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature |
| Warning Lights | Direction Indicators, Battery Charge, Headlight Main Beam, Low Engine Oil, Pressure & Brake Lights |
| Functions | Draft Control, Position Control |
| Pump Type | Response Control, Constant Pumping |
| Maximum Oil Flow | Reciprocating Ferguson Pump |
| Maximum Pressure | 16L / mix |
| Max. Lift Capacity with Lower | 19.2 Mpa |
| Links Horizontal | Max. Lift Capacity with Lower 1,415 kg |
| Lower Links | With Cat, I & II Interchangeable Balls |
| Gross Weight | 1,650 kg |
| Wheel Base | 1,892 mm |
| Overall Length | 3,260 mm |
| Overall Width (Min) | 1,651 mm |
| Over Exhaust | 2,145 mm |
| Over Steering Wheel | 1,410 mm |
| With Brakes | 5,560 mm |
| Without Brakes | 6,200 mm |
| Fuel Tank | 47.5L |
| Engine Pump | 6.8L |
| Cooling System | 10.2L |
| Hydraulic System | 36.0L |
| Steering Box | 0.9L |
| Oil Bath Air-Cleaner | 0.5L |
